首页 > Products > Diaphragm coupling

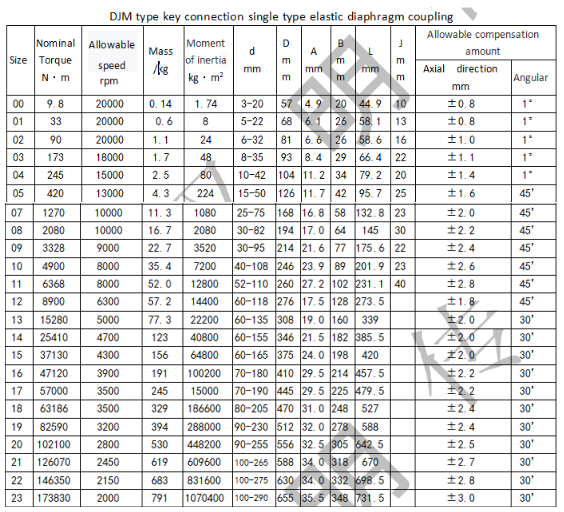

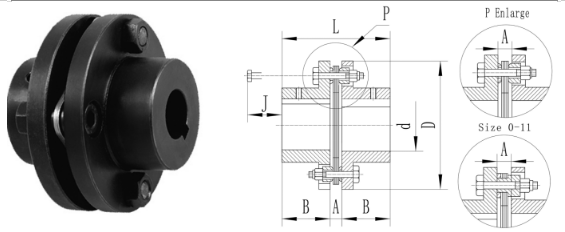

DJM type

产品型号:DJM

标准编号:
联轴器类型:Key connection single type diaphragm coupling
公称转矩:9.8~173830N·m
轴孔:3~290
外形尺寸:57~655
孔径:3~290
重量:0.14~791kg
长度:44.9~731.5
外径:57~655
是否提供加工定制:Yes

产品描述
参数详情

Main features of DJM diaphragm coupling:
■The allowable range of eccentricity can be flexibly applied to various transmission systems.
■ Quick disassembly and assembly, with high assembly repeatability.
■No lubrication, no noise, no wear. No sliding, friction, rotation
Moving parts can reduce energy loss.
■Simple structure and light weight.
■No maintenance is required, and the fault can be checked with naked eyes during shutdown.
■Good environmental adaptability, can run at high temperature.
■High transmission precision. High reliability and long life.
