WGT type

产品型号:WGT

标准编号:JB/T 7004-1993
联轴器类型:drum gear coupling
公称转矩:710~1250000N·m
轴孔:12~520
外形尺寸:122~1060
孔径:12~520
重量:5.6~3800kg
长度:32~800
外径:122~1060
是否提供加工定制:Yes

产品描述

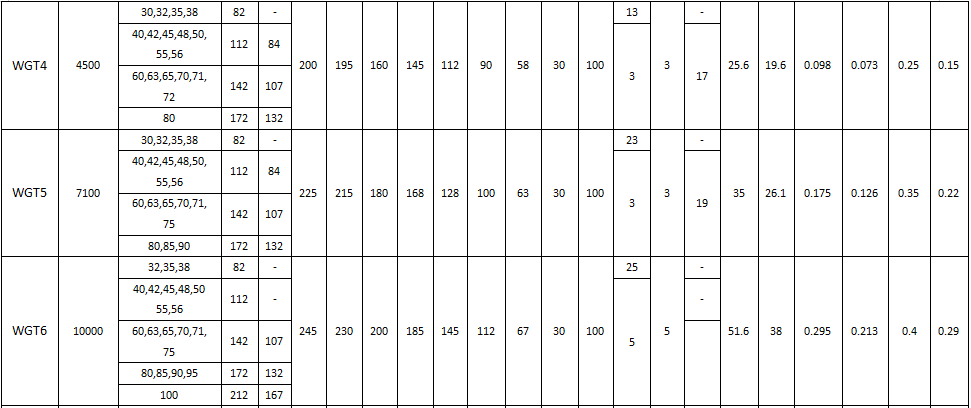

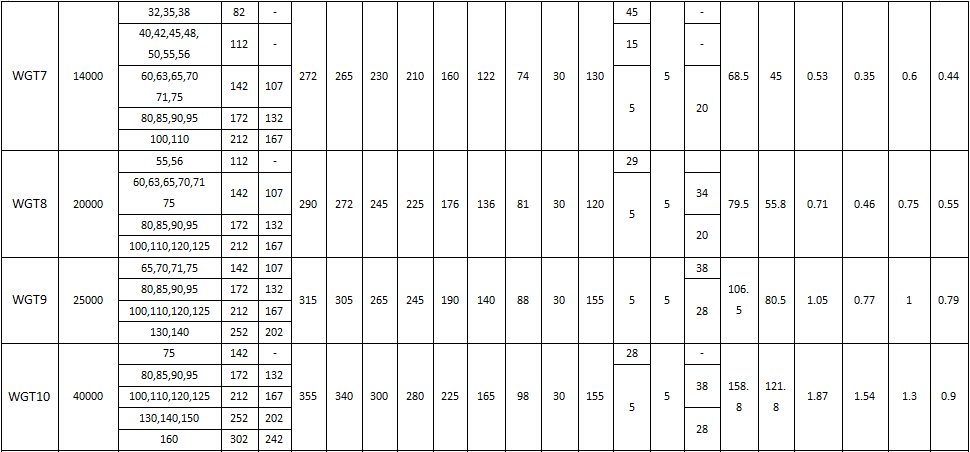

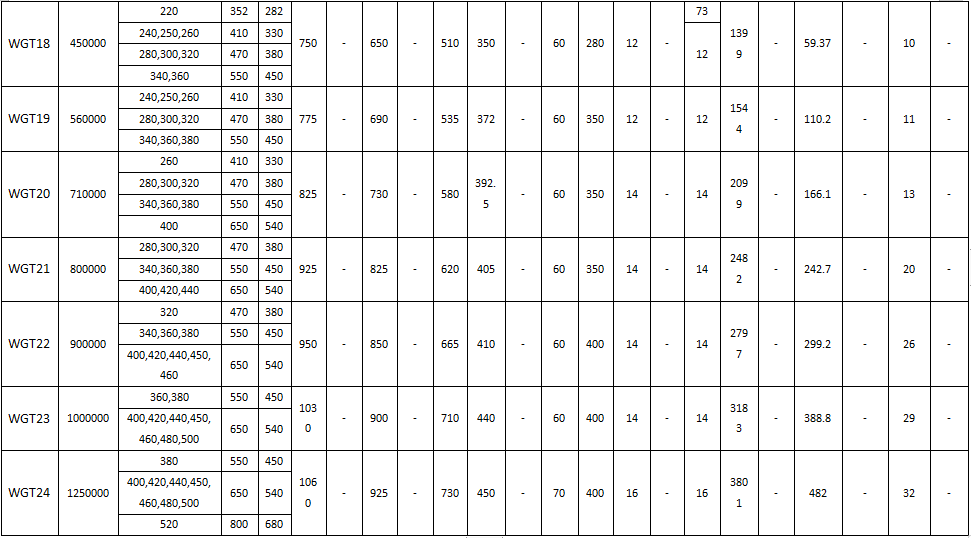

参数详情

    The drum-shaped gear coupling is to make the external teeth into a spherical surface, the center of the spherical surface is on the gear axis, and the gap on the ulnar side is larger than that of the ordinary gear. The drum-shaped gear coupling can allow a larger angular displacement (relative to the straight gear coupling), which can improve the contact conditions of the teeth, increase the torque capacity, and extend the service life.

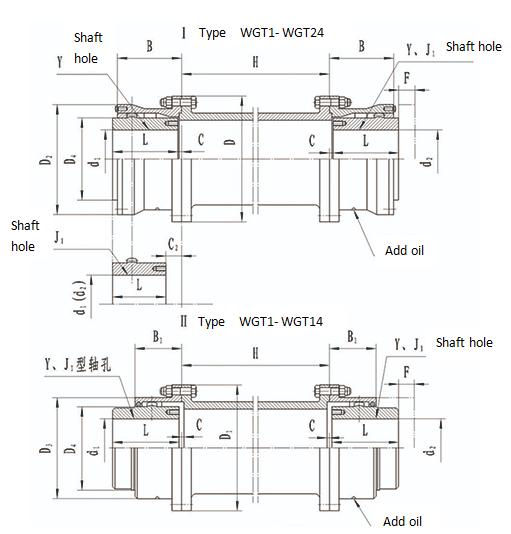

     WGT type is connected to the middle set of drum-shaped gear coupling, which is suitable for long distance connection. The nominal torque is 800~1400000N·m.
