MCA-G type torque limiter

产品型号:MCA-G

标准编号:MC
联轴器类型:Torque limiter

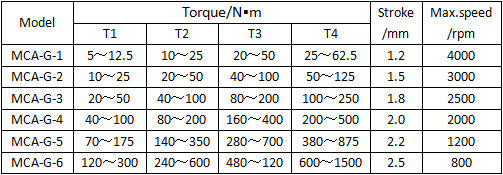

公称转矩:5~1500N·m
轴孔:10~80
外形尺寸:70~175
孔径:10~80
重量:
长度:102~255
外径:70~175
是否提供加工定制:Yes

产品描述
参数详情

Main performance characteristics:
1. The standard zero-backlash elastic coupling facilitates the connection between the shaft and the shaft, has a certain eccentricity compensation function, and has good shock absorption.
2. High response speed and accuracy.
3. The reset method can be reset at 15°, 30° and 60° upon request.
4. After overload, it can be equipped with proximity switch, output signal alarm or stop the motor.
5. The adjusting nut has a scale on the compression plate, which is convenient for adjusting the torque.
